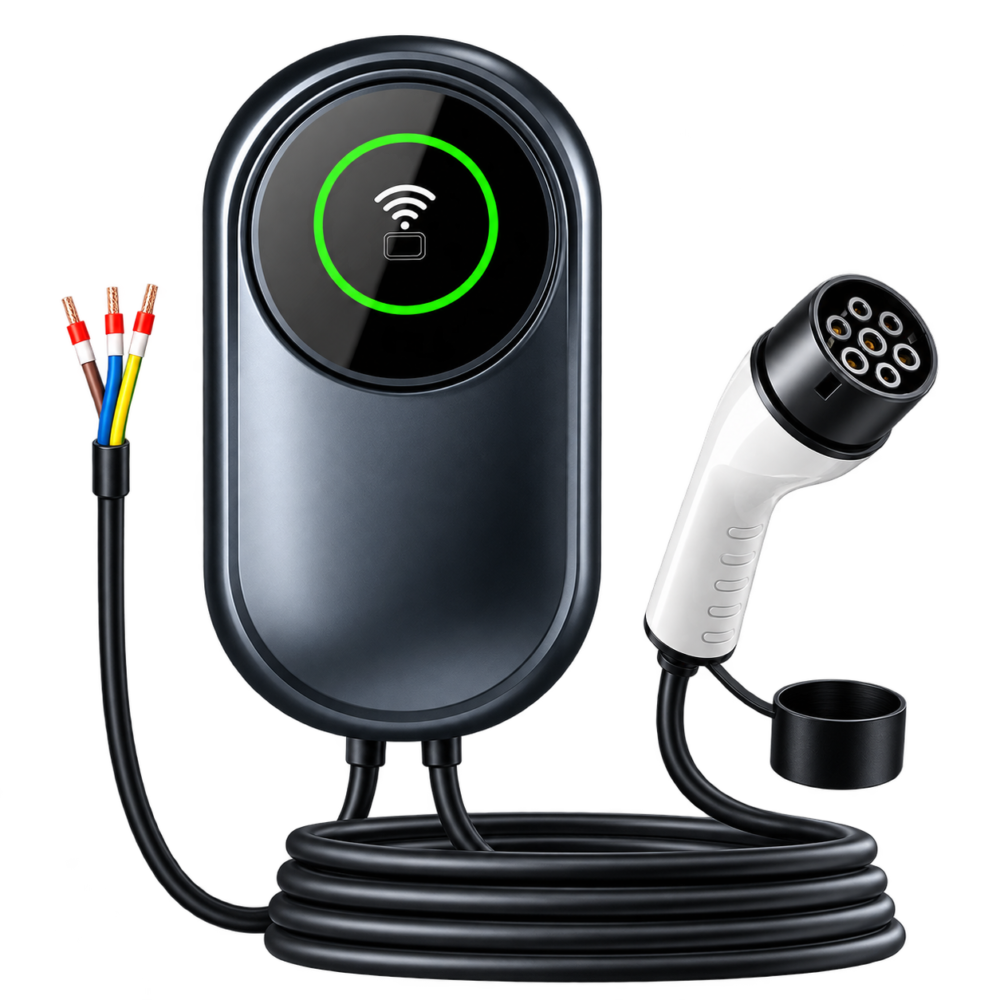

7kW 11kW 22kW Smart Wallbox EV Charger
- 7kW 11kW 22kW(Optional)
- Type 1 / Type 2 / GB/T (Optional)
- RFID Access
- Tuya APP Control
- Bluetooth & Wi-Fi
- Color LCD Display
- Scheduled Charging
Description
This smart wallbox EV charger is available in 7kW, 11kW and 22kW versions, featuring RFID access, Bluetooth, Wi-Fi and Tuya APP control. Multiple connector options and adjustable current provide flexible charging solutions for different markets and applications.
| Specification | Options |
|---|---|
| Rated Power | 7kW / 11kW / 22kW (Optional) |
| Input Voltage | 220–250V AC / 380V AC, depending on configuration |
| Maximum Current | 16A / 32A, depending on configuration |
| Adjustable Current | 8–16A / 8–32A, depending on configuration |
| Phase | Single Phase / Three Phase |
| Vehicle Connector | Type 1 / Type 2 / GB/T (Optional) |
| Input Connection | Hardwired / CEE Plug (Optional) |
| Cable Length | 5m Standard |
| Display | Color Display |
| Charging Control | RFID / APP Control |
| Scheduled Charging | Available |
| Smart Connectivity | Bluetooth / Wi-Fi |
| APP Platform | Tuya APP |
| Temperature Protection | Available |
| Electrical Protection | Overvoltage / Overload / Leakage Protection |
